WHOOSH! A powerful wind sweeps across the prairie, engulfing all flora and fauna lying in its path. Yet, underneath the prairie soil, sleeping peacefully in its cozy winter burrow is the 13-lined ground squirrel (aka Ictidomys tridecemlineatus).
The 13-lined ground squirrel hibernates every winter, passing into a deep, dormant state to avoid the harsh freezing climate. The squirrel’s heart rate, metabolism, and body temperature decrease considerably, slowing down blood flow to its brain. Yet, despite the relative lack of oxygen and nutrients caused by reduced cerebral blood flow, the 13-lined ground squirrel survives. In fact, it ranks among the “most brain hypoperfusion-tolerant mammals known,” boasting remarkable tolerance to reduced blood flow to the brain.
Juxtaposed with the resilience of the 13-lined ground squirrel brain is the fragility of the human brain. Globally, over 7.6 million people suffer from ischemic strokes each year. These strokes occur when blood vessels in the brain become obstructed. Reduced blood flow during ischemic stroke cuts off much-needed oxygen and glucose (a type of sugar), resulting in neuronal/glial cell death.
Dr. John M. Hallenbeck is an emeritus senior investigator at the National Institutes of Health (NIH) and the former director of the Stroke Branch at the National Institute of Neurological Disorders and Stroke (NINDS). He was a pioneer in squirrel-stroke research. He and his team discovered the ischemic resilience of the 13-lined ground squirrel is driven in large part by a post-translational cellular process called SUMOylation. During SUMOylation, Small Ubiquitin-like Modifier (SUMO) proteins bind to other proteins and in so doing modify their activity, location, and/or stress responses. Dr. Hallenbeck observed that SUMOylation dramatically increased in 13-lined ground squirrels during hibernation and this allowed the squirrels to endure extreme conditions while hibernating.
Dr. Joshua D. Bernstock, a neurosurgeon-scientist, collaborated with Dr. Hallenbeck to study the ischemic tolerance of the 13-lined ground squirrel.
“These squirrels are having bouts of ischemia (decreased blood flow) — in the context of hibernation — that are more extreme than any human stroke, yet have no cellular pathology, no behavioral deficits,” explained Dr. Bernstock.
While the team has pursued a variety of modalities in an effort to therapeutically engage SUMOylation, a recent study by Drs. Bernstock and Hallenbeck investigated whether classes of small molecules could be identified that could artificially increase SUMOylation levels in pertinent murine models. By artificially increasing SUMOylation levels using small molecule drugs, the researchers hoped to emulate the 13-lined ground squirrel and achieve greater resilience against reduced blood flow. In doing so, they hoped to ultimately develop a compound that could be used in clinical settings. They examined 4,096 small molecules to identify compounds that could boost SUMOylation. Compounds that inhibit an anti-SUMOylation protein called SUMO-specific isopeptidase (SENP2) were targeted. Essentially, by blocking SENP2, the researchers hoped to suppress an inhibitor of SUMOylation and thereby increase global SUMOylation levels.

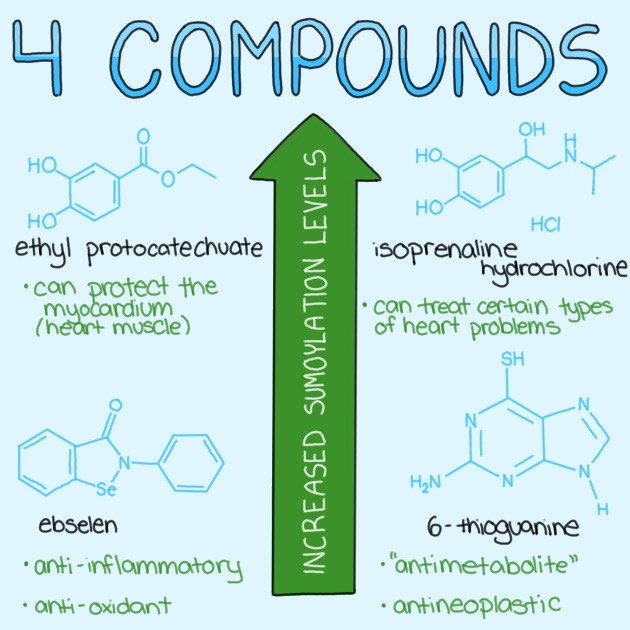

One of the techniques Drs. Bernstock and Hallenbeck utilized to narrow down the over 4,000 candidate compounds was cellular thermal shift assay (CETSA). The research team used CETSA to evaluate how well each small molecule compound engaged with the SENP2 protein. Eventually, after a lengthy screening process, eight compounds were identified as potential inhibitors of SENP2 activity. These eight compounds were then co-cultured with rat neuronal cells to assess whether they could boost SUMOylation levels. Four compounds: ebselen, 6-thioguanine, isoprenaline hydrochloride and ethyl protocatechuate increased SUMOylation levels.
Further testing showed that two of the compounds, ebselen and 6-thioguanine, not only increased SUMOylation levels in rat neuronal cells but also protected the cells when they were deprived of oxygen and glucose in vitro. Remarkably, ebselen also increased SUMOylation levels in the brains of fully-grown mice.
Following the success of their study, the researchers now aim to investigate if boosting SUMOylation levels with ebselen can actually protect the brains of animal models during stroke-like conditions. By utilizing small molecule drugs to treat animal models of stroke, the same compounds could potentially be applied to treat ischemic stroke in humans.
Dr. Bernstock, the lead author of this study, remarked that “nature, through iterative evolution, has solved what’s one of the most complex problems in human biology and pathophysiology.”
Research on the extraordinary 13-lined ground squirrel’s ischemic tolerance highlights the importance of occasionally looking at nature to solve complex clinical problems.
“Ultimately, a lot of what scientists are trying to do have been solved in some form by nature,” explained Dr. Bernstock, “If we understand what nature has been able to do, we can come up with profound insights.”
- The 13-lined ground squirrel is providing some helpful insights when it comes to combatting the devastating impacts of stroke.
- When these squirrels hibernate each winter, they boast a remarkable tolerance to reduced blood flow to the brain.
- Scientists hope to glean helpful data from studying these animals, information that can then be used to treat human stroke patients.
“WSO Global Stroke Fact Sheet 2022.” World Stroke Organization, https://www.world-stroke.org/news-and-blog/news/wso-global-stroke-fact-sheet-2022.
Lee YJ, Bernstock JD, Klimanis D, and Hallenbeck JM. Akt Protein Kinase, miR-200/miR-182 Expression and Epithelial-Mesenchymal Transition Proteins in Hibernating Ground Squirrels. Front Mol Neurosci. 2018;11:22.
Bernstock JD, Yang W, Ye DG, Shen Y, Pluchino S, Lee YJ, et al. SUMOylation in brain ischemia: Patterns, targets, and translational implications. J Cereb Blood Flow Metab. 2017:271678X17742260.
Bernstock JD, Yang W, Ye DG, Shen Y, Pluchino S, Lee YJ, et al. SUMOylation in brain ischemia: Patterns, targets, and translational implications. J Cereb Blood Flow Metab. 2018;38(1):5-16.
Bernstock JD, Ye DG, Lee YJ, Gessler F, Friedman GK, Zheng W, et al. Drugging SUMOylation for neuroprotection and oncotherapy. Neural Regen Res. 2018;13(3):415-6.
Lee YJ, Mou Y, Klimanis D, Bernstock JD, and Hallenbeck JM. Global SUMOylation is a molecular mechanism underlying hypothermia-induced ischemic tolerance. Front Cell Neurosci. 2014;8:416.
Bernstock JD, Lee YJ, Peruzzotti-Jametti L, Southall N, Johnson KR, Maric D, et al. A novel quantitative high-throughput screen identifies drugs that both activate SUMO conjugation via the inhibition of microRNAs 182 and 183 and facilitate neuroprotection in a model of oxygen and glucose deprivation. J Cereb Blood Flow Metab. 2016;36(2):426-41.
Lee YJ, Bernstock JD, Nagaraja N, Ko B, and Hallenbeck JM. Global SUMOylation facilitates the multimodal neuroprotection afforded by quercetin against the deleterious effects of oxygen/glucose deprivation and the restoration of oxygen/glucose. J Neurochem. 2016;138(1):101-16.
Bernstock JD, Peruzzotti-Jametti L, Leonardi T, Vicario N, Ye D, Lee YJ, et al. SUMOylation promotes survival and integration of neural stem cell grafts in ischemic stroke. EBioMedicine. 2019;42:214-24.
Bernstock JD, Ye D, Smith JA, Lee YJ, Gessler FA, Yasgar A, et al. Quantitative high-throughput screening identifies cytoprotective molecules that enhance SUMO conjugation via the inhibition of SUMO-specific protease (SENP)2. FASEB J. 2017.
Bernstock JD, Ye DG, Griffin A, Lee YJ, Lynch J, Latour LL, et al. Cerebral Ischemia Increases Small Ubiquitin-Like Modifier Conjugation within Human Penumbral Tissue: Radiological-Pathological Correlation. Front Neurol. 2017;8:738.
